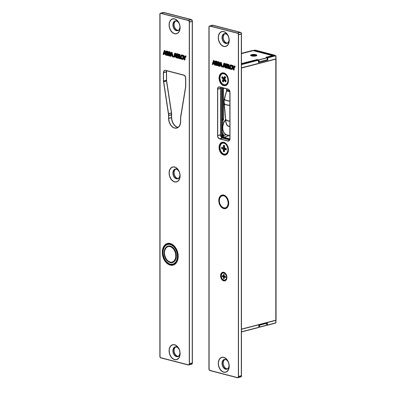

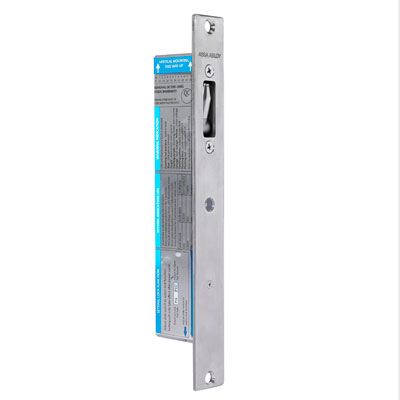

The Trimec ES8100 electric V-Lock lock has a high torque mortised bolt that moves into a V shaped strike plate pulling the door into alignment with the lock. Fire rated versions are supplied with an intumescent kit to suit either FD30 or FD60 rated fire doors
The ES8100 may be mounted either vertically or horizontally but cannot be mounted in the floor.
The ES8100 V-Lock can be mortice mounted and concealed from view or surface mounted, with the inclusion of an optional kit. A slim design with classic satin stainless steel faceplate, makes the ES8100 a product with great aesthetic appearance and easy installation.
Features:
- Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode
- Locks under a Pre-Load of 20kg (12W) and 35kg (24W)
- 1000kg Holding Force
- IP53 rated for external door applications
- Door Position and Lock Status Monitoring
- On-Board visual Lock Status indication and diagnostics LED
- Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection
- Optional Surface / Glass mount Kit
- May be mounted vertically or horizontally (must not be mounted in the floor)
- Allows for door misalignment of up to 12mm total (+/-6mm)
- Operating voltage: 11.4 - 26VDC
- Durability tested to 500,000 cycles (120N unlocking, 50N locking)
Applications:
- Single and Double Swing hinge Doors
- Doors subject to Side Load (Pre-Load)
- Misaligned doors
- Glass doors
- Suitable for use with Access Control, Intercom, Keypad and Card Reader Systems and doors requiring door position monitoring
Technical Specifications:
- Voltage: 11.4 - 26VDC
- Current: Peak Current: 1000mA, Idle Current: 35mA @12VDC with LED activated
- Unlocking Pre-Load: Side Load rated: Motorised unlocking - 100kg max at the bolt
- Strength: Maximum 1000kg
- Monitoring: Lock Status Monitoring: NO/NC, Door Position Monitoring: NC
- Unlocking Time: 1 Second under Preload
- Locking Time: 3 Seconds
- Environment: Weather resistant construction to IP53
- Operating Temperature: -10 to +60 Degrees Celsius
- Endurance: 500,000 operations (120N Unlocking, 50N Locking)
- Construction: Stainless Steel lock body, Face plate and Strike Plate

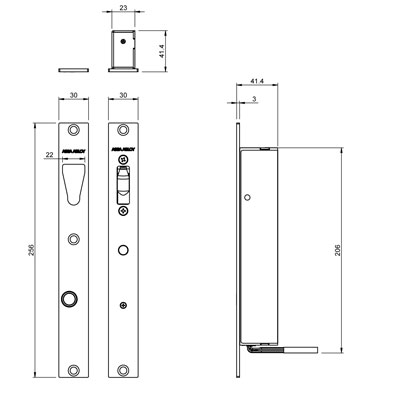

Dimensions:
- Body: 210 x 24 x 42mm
- Faceplate: 256 x 30mm
- Strike Plate: 256 x 30mm
Finish:
Stainless Steel
When used with timber fire doors, interden fire pack is required:
- FD30 Timber fire door 1mm interden pack available - Part number: ES8100-IK-FD30.
- FD60 Timber fire door 2mm interden pack available - Part number: ES8100-IK-FD60.
- FD240 Steel no pack required.
