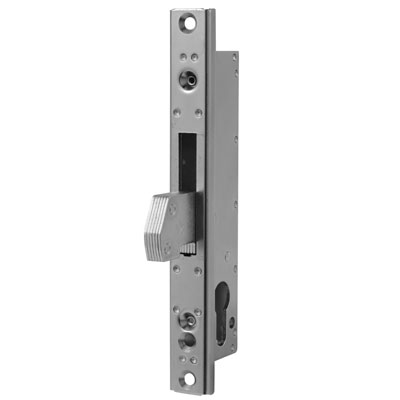

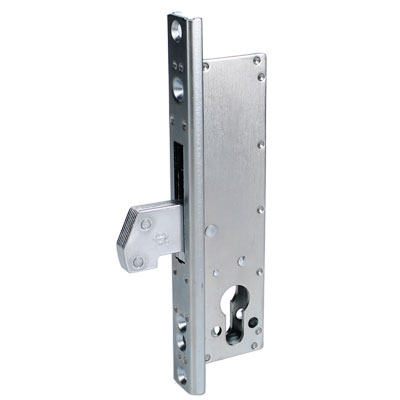

The ADAMS RITE 2600 Sentinel Mortice Deadlock Case is manufactured from steel, with a corrosion-resistant plating, and is suitable for use with steel or aluminium doors. This deadlock case has been specifically engineered to comply with BS EN 12209 Grade 6 and the bolt can withstand 10kN side load in unsupported application and 6kN end load. It is locked and unlocked by 360° turn of key/thumbturn, with the key only removable when the bolt is positively locked or unlocked, preventing the risk of leaving the door accidentally unlocked.
Developed to offer extreme security single point locking for aluminium doors, the 2600 Sentinel 6 is in a class of its own. As a deadlock with a barbolt, it meets the stringent EN 12209 lock standard test to security grade 6.
- Bolt withstands 10kN side load in unsupported application and 6kN end load
- Barbolt with anti-spread feature incorporating benefits of a hookbolt
- Enclosed mechanism prevents potential for tampering whilst under attack
- Tested in accordance with EN 12209: 2003 Grade 6 security
- Suitable for use with steel or aluminium doors
- Corrosion-resistant plating
- Steel construction
Supplied with mounting tabs
Not supplied with cylinder or faceplate
Faceplate supplied separately with Flat (Square) or Radius Corners. See 2627
Security Escutcheons supplied separately. See AH 2627 90

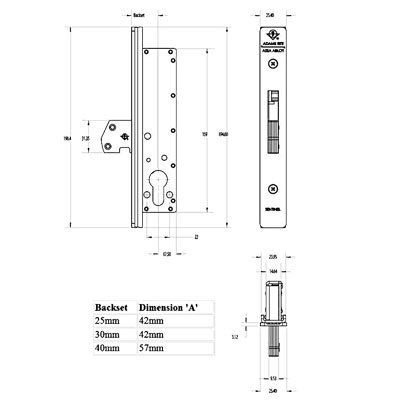

Technical & Dimensions
Backset: 25, 30 or 40mm
Case size: 42 x 159 x 25mm
